Ketuhar Sembur Kereta Biasa
WLD7100 Normal Car Spraying Oven Konfigurasi:
Papan dinding:EPS gaya sandwic (epispatik polistirena) ketebalan 50mm. Panel bumbung keluli tergalvani.
Ruang bawah tanah: Galvanized steel sheet and square steel pipe construction. 2 rows of grids with floor filter 3 rows of checkered plates. 2 pcs of ramps.
pintu:3 pcs of luxury front doors with 0.8mm thickness colorful steel skin. Size: 3000(w) x 2750(h). 1 pc of emergency door. Watching window with aluminum frame.
Sistem Peredaran Udara:2x4kw intake fan. BELIMO 20N electric damper.
Burner: Italy Riello G10 diesel burner, 100000Kcal/h. The heating time 7-9min(20-60.C). Max. temperature
at 80.C. Fuel consumption is 4-5kg/vehicle.
Penukar haba: Diperbuat daripada keluli tahan karat. Kadar pertukaran haba mencapai 85 peratus .
Lighting System:Ceiling light has 24 pcs of 16w LED lamps. 800 Lux.
Pembersihan Udara:Dual filtering structure. The primary filter can capture granules larger than 10μm. Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment can reaches 98 percent .
Model | Saiz Luaran (m) | Saiz Dalaman (m) | Aliran Udara (m3/h) | Kelajuan Udara (m/s) | Power (kw) | Sesuai dengan Kenderaan |
WLD7100 | 7x5.45x3.48 | 6.9x3.9x2.8 | 24000 | 0.3-0.5 | 10 | Jeep Kereta Saloon |

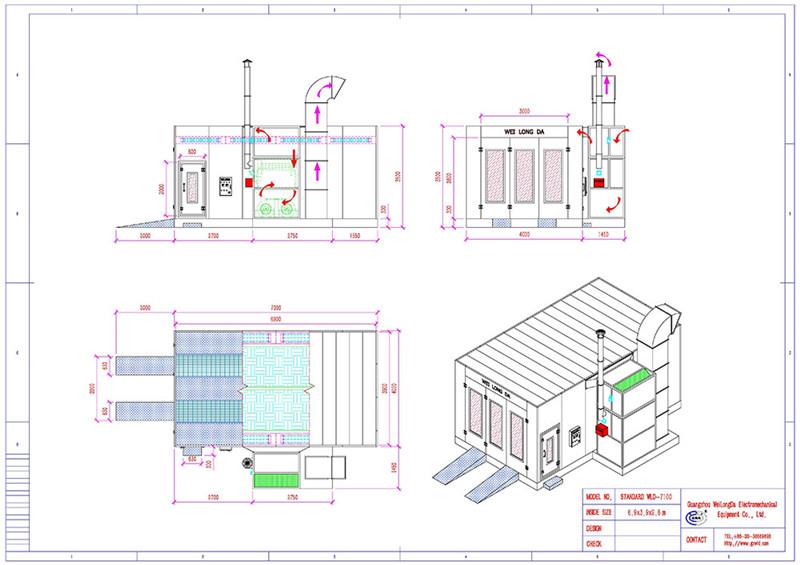

Lukisan:
